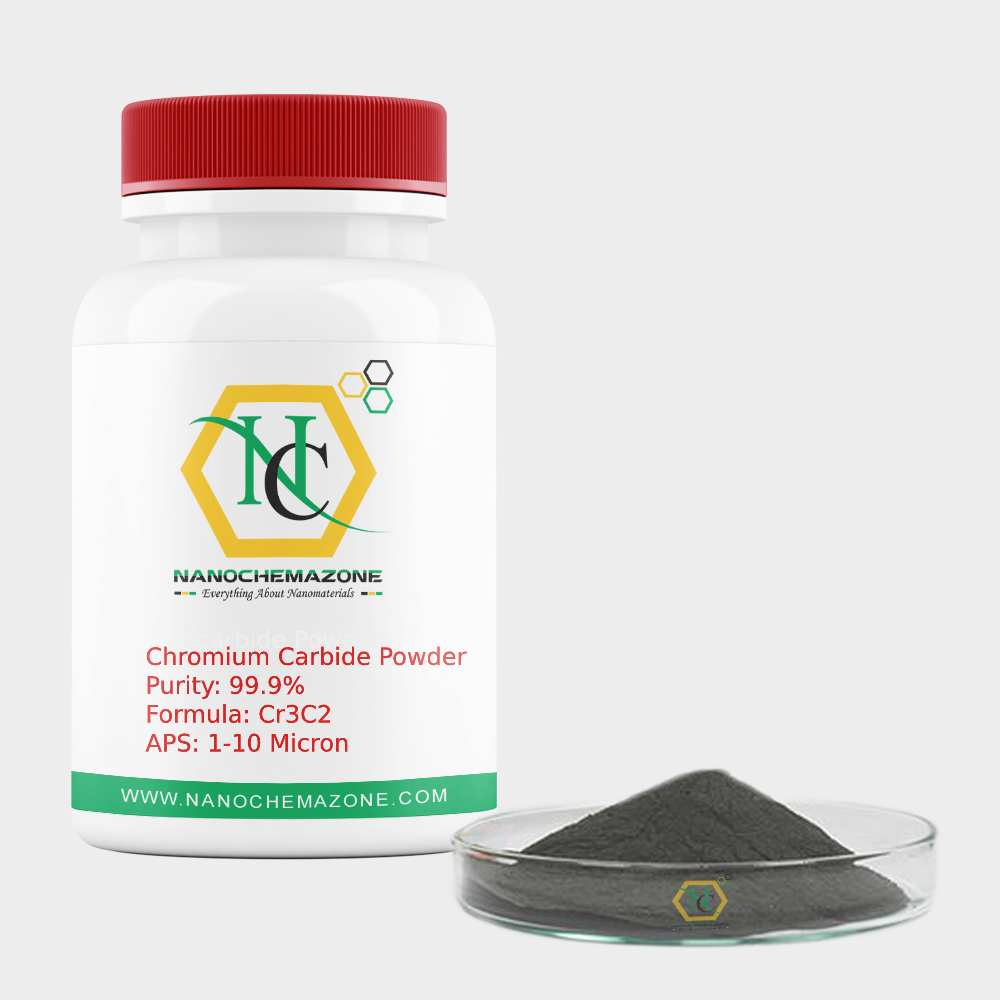

Product Name: Chromium Carbide Cr3C2 Powder

Chromium Carbide Cr3C2 Powder APPLICATION FIELDS

Chromium Carbide Cr3C2 Powder is a ceramic compound that exists in several different chemical compositions: Cr3C2, Cr7C3, and Cr23C6. At standard conditions, it exists as a gray solid.

It is extremely hard and corrosion-resistant.

It is also a refractory compound, which means that it retains its strength at high temperatures as well.

These properties make use as an additive to metal alloys. When chromium carbide crystals are integrated into the surface of a metal it improves the wear resistance and corrosion resistance of the metal and maintains these properties at elevated temperatures.

Cr3C2 powder is mixed with solid nickel-chromium. This mixture is then heated to very high temperatures and sprayed onto the object being coated where it forms a protective layer. This layer is essentially its own metal matrix composite, consisting of hard ceramic Cr3C2 particles embedded in a nickel-chromium matrix.

Cr3C2 prevents large grains from forming in the composite, which results in a fine-grained structure of superior toughness.

Chromium Carbide Cr3C2 Application:

1. Used as high temperature resistant and wear-resistant surface materials
2. Used for welding and flux-cored wire
3. Chromium carbide is useful in the surface treatment of metal components.
4. Chromium carbide is used to coat the surface of another metal in a technique known as thermal spraying.
5. Chromium carbide is used as an additive in cutting tools in order to improve toughness by preventing the growth of large grains.

Chromium Carbide Cr3C2 Properties:

There are three different crystal structures for chromium carbide corresponding to the three different chemical compositions. Cr₂₃C₆ has a cubic crystal structure and a Vickers hardness of 976 kg/mm². Cr₇C₃ has a hexagonal crystal structure and a microhardness of 1336 kg/mm².

Cr₃C₂ is the most durable of the three compositions and has an orthorhombic crystal structure with a microhardness of 2280 kg/mm². For this reason, Cr₃C₂ is the primary form of chromium carbide used in surface treatment.

Please email us for the customization.

Email: contact@nanochemazone.com

Please contact us for customization and price inquiry

Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
